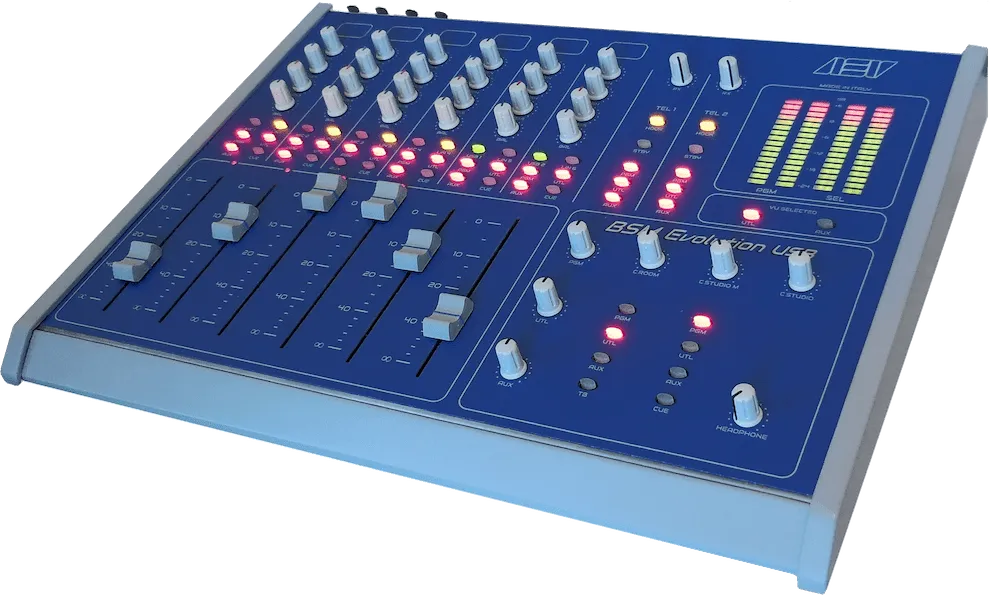

AEV BSM USB EVO - 6 Channel Low Cost Radio Console with 2 tel Hybrids

Name: AEV BSM USB EVO - 6 Channel Low Cost Radio Console with 2 tel Hybrids
SKU: 363152

Compact On Air Console BSM Evolution USB

Compact consol with 6 Input double switchable channels, two USB audio interface and two telephone hybrids, designed specifically for broadcast applications.

General overview:

INPUT
– 4 balanced mono micro inputand
– 6 stereo line
– USB audio interface
– Tone control (All inputs)

OUTPUT
– Master stereo PGM
– Master stereo UTL
– Master stereo AUX

Auxiliary
– 2 telephone hybrid internally integrated
– Recorder stereo output On USB 1(PGM) and USB 2 (UTL)
– Control Room stereo output
– Control Studio stereo output
– Control studio mute stereo output
– 1 headphone output

Other features
– Led meter fix for monitoring PGM, UTL and PFL levels
– Led meter switchable for monitoring Aux, UTL and CUE levels
– 100 mm ALPS faders
– Phantom power activable on each microphone inputs
– configurer fader start on microphone inputs
– Logic I/O port
– rackmountable 19″
