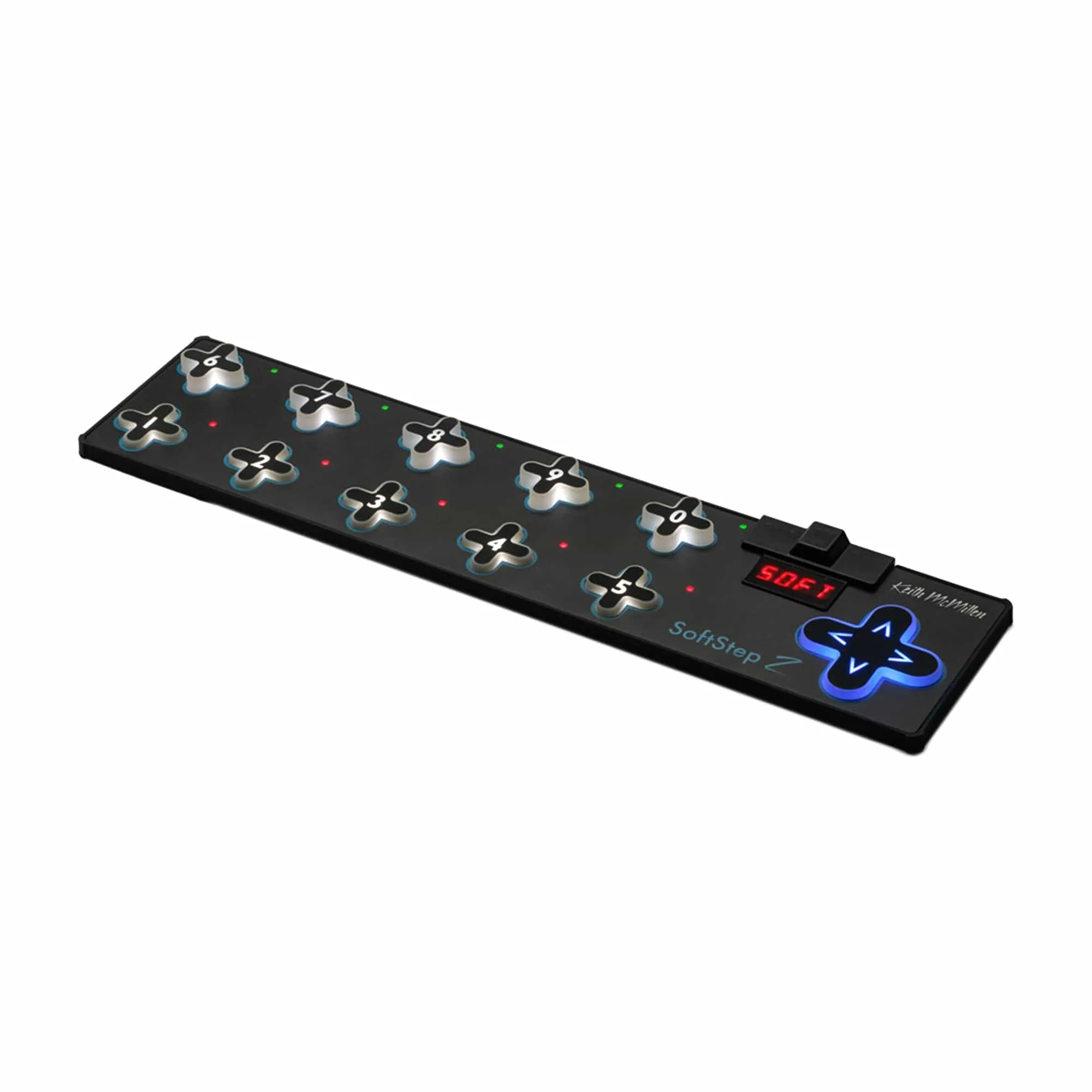

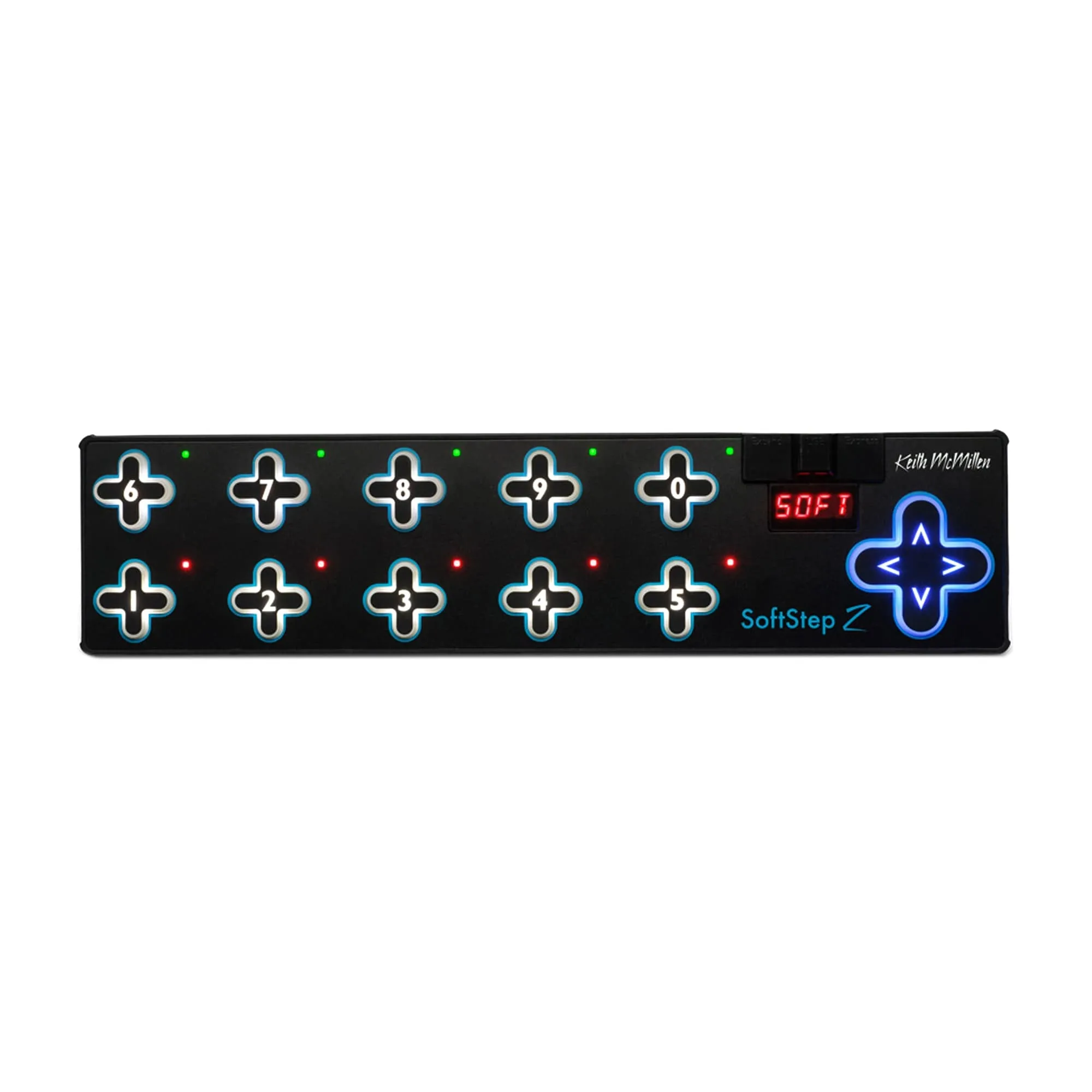

SoftStep 2 is a generational leap beyond traditional pedalboards: an unbreakable, programmable MIDI foot controller, giving you unmatched connectivity to any and all of your rigs. The 10 gesture-sensitive pads register pressure and position, allowing you not just precision, but expression in your foot controls. SoftStep 2’s status-indicating LEDs and crystal-clear alphanumeric display ensure you never get lost, whether on a dark stage or deep in the groove.

At 18” and 1.3 pounds, SoftStep 2 travels with you anywhere in a backpack or gig bag, and is rugged enough to be thrown onto the stage night after night. SoftStep 2 is easy to use out of the box, with built-in compatibility with all major music software. The combination of LED feedback and pads layered with our Smart Fabric sensors gives you a centralized control source at the tips of your toes—freeing your hands to actually play.

Brilliantly Backlit
SoftStep 2 provides visual feedback from backlit keys, LED indicators, and an alphanumeric display.

Smart Fabric
Complete gestural control. A Smart Fabric layer under each key detects foot position and pressure in real time.

Road Proof
Durable by design. Softstep 2 has been tested to survive spills, 2-story falls onto concrete, and being run over by a car.


Controllers

• 10 keys with pressure and location (X/Y) sensitivity
• 1 navigation pad with pressure and location sensitivity

LEDs / Display

• 10 bi-color (red/green) LEDs
• 4 character alpha-numeric display

Dimensions

• 450mm x 105mm x 24mm
• 17.7in x 4.1in x 0.94
• Weight 1.3lbs (0.59kg)

Connections

• USB connector
• Mini-USB connector

Power Source

• USB bus power
• USB power supply (not included)
• Power Consumption
• SoftStep 1 hardware: ~105mA max draw @ 5V
• SoftStep 2 hardware: ~ 140mA max draw @ 5V

Included Accessories

• USB cable (5m, USB 2.0)

Data Transmitted

• Class-compliant MIDI over USB
• MIDI over 5-pin DIN (via KMI Expander)

System Requirements (Mac) (Software Editor)

• Mac OS 10.5 or later
• Intel Core 2 Duo processor or greater
• 50MB free hard disk space

System Requirements (Windows) (Software Editor)

• Windows 7 or greater
• Intel Core 2 Duo processor or greater
• 50MB free hard disk space
