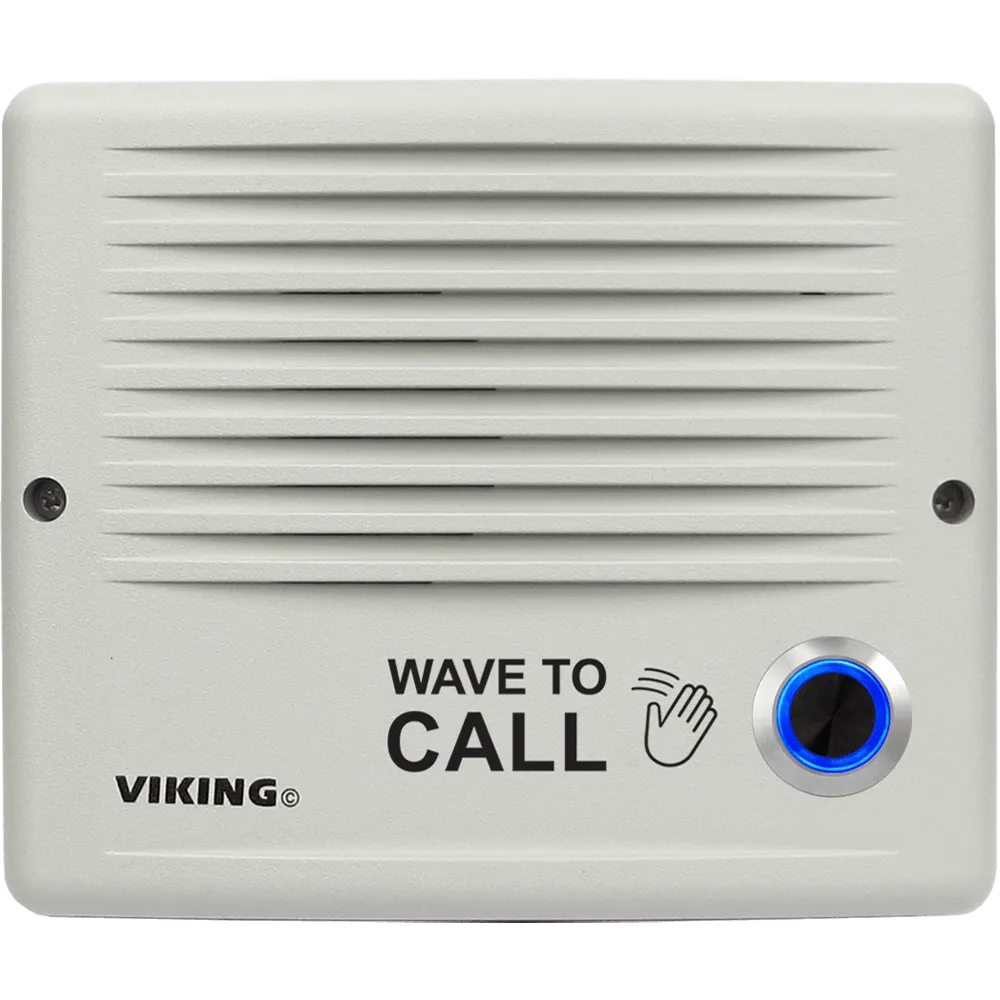

Viking E-20TF-IP Features
- Touch-free motion sensor with adjustable range from one to four inches
- Motion sensors ring LED lights blue during idle, flashes green during dialing and lights steady green when call is answered
- Automatic polling and programming software included
- 2 Amp relay contacts for door/gate or
- SIP compliant
- Outbound Proxy, Authentication ID, Peer to Peer, VLAN Tagging
- PoE powered (class 1, <4 Watts)
- Automatic Noise Canceling (ANC) for proper operation in noisy environments
- VoIP eliminates the need for “Push to Talk” mode
- Network downloadable firmware
- T-10 Torx security screws for added security
- Can be used with optional
- Marine grade 316 stainless steel prevents corrosion on stainless steel models
- Laser etched graphics on stainless steel models
- Programmable to dial up to 5 numbers on busy or ring no answer
- Cycles through backup phone numbers on busy or no-answer
- Hangs up on busy signal, time-out or touch tone command
- Remotely programmable
- Extended temperature range of -40°F to 140°F
- 3 different chassis available
- Volume adjustments for microphone and speaker
- Surface mounts to a wall or flat sided post
- Diagnostics for testing microphone, speaker, and relay
Applications:
Gesture activated entry phone for use in high traffic areas, such as:
- Gate entrance
- Parking ramps/lots
- ATM machines
- Medical centers
- Lobbies
- Entryways
- Stadiums
- Convention centers
- Public access areas
Specifications
| Power | PoE class 1 (<4 watts) |
|---|---|
| Operating Temperature | -40°F to 140°F (-40° C to 60° C) |
| Humidity | 5% to 95% non-condensing |
| Audio Codecs | G711u, G711a, G722 |
| Network Compliance | IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over |
| Regulatory Compliance | FCC Part 15, Canada ICES-3 Class A |
| Maximum Sound Pressure | 90 dB SPL @ 1m |
| Connections | (1) RJ45 10/100 Base-T, (3) gel-filled butt connectors |
