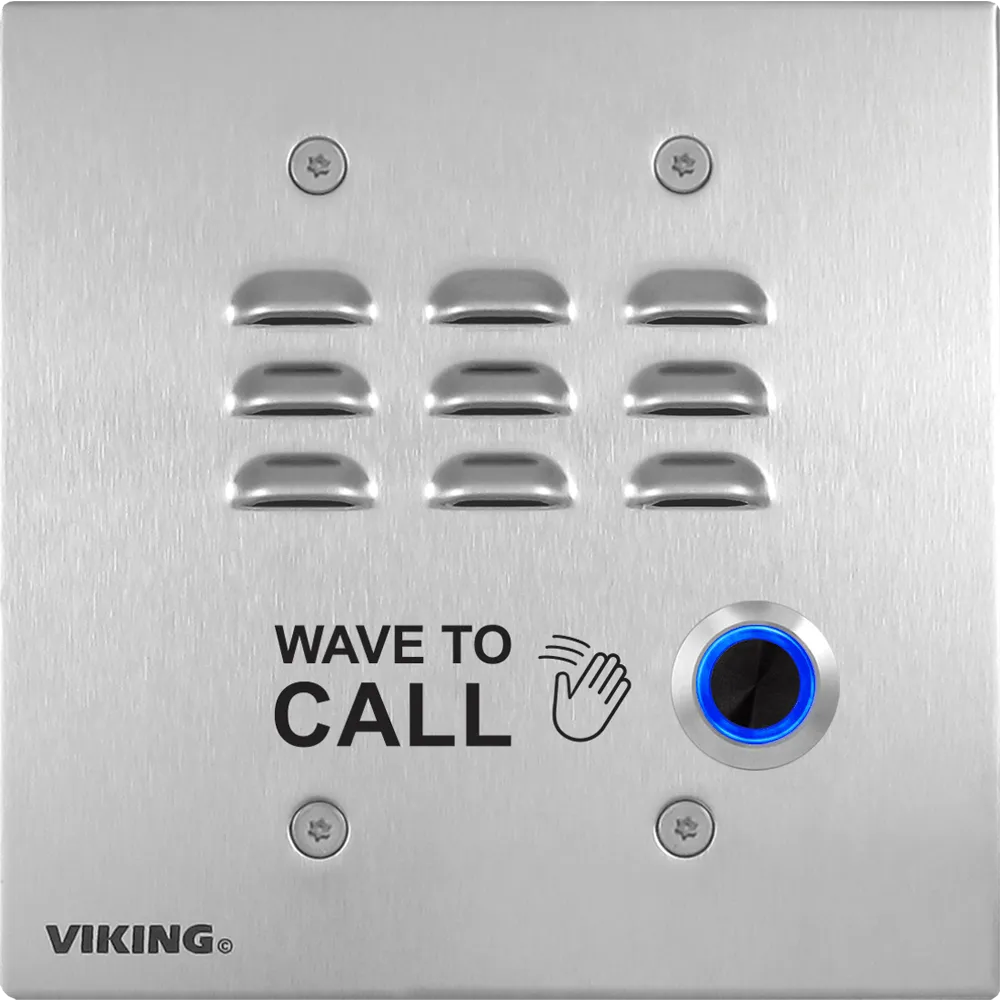

• Touch-free motion sensor with adjustable range from one to four inches
• Motion sensors ring LED lights blue during idle, flashes green during dialing and lights steady green when call is answered
• Automatic polling and programming software included
• 2 Amp relay contacts for door/gate or SL-2 Strobe Light control
• SIP compliant
• Outbound Proxy, Authentication ID, Peer to Peer, VLAN Tagging
• PoE powered (class 1, <4 Watts)
• Automatic Noise Canceling (ANC) for proper operation in noisy environments
• VoIP eliminates the need for “Push to Talk” mode
• Network downloadable firmware
• T-10 Torx security screws for added security
• Can be used with optional RC-4A Secure Relay Controller
• Marine grade 316 stainless steel prevents corrosion on stainless steel models
• Laser etched graphics on stainless steel models
• Programmable to dial up to 5 numbers on busy or ring no answer
• Cycles through backup phone numbers on busy or no-answer
• Hangs up on busy signal, time-out or touch tone command
• Remotely programmable
• Extended temperature range of -40°F to 140°F
• Volume adjustments for microphone and speaker
• Flush mounts in a standard double gang electrical ­­­­­­­­­box (not included)­­­­
• Diagnostics for testing microphone, speaker, and relay

Viking E-32TF-IP APPLICATIONS
Gesture activated entry phone for use in high traffic areas, such as:

• Gate entrance
• Parking ramps/lots
• ATM machines
• Medical centers
• Lobbies
• Entryways
• Stadiums
• Convention centers
• Public access areas

SPECIFICATIONS

Power	PoE class 1 (<4 watts)
Operating Temperature	-40°F to 140°F (-40° C to 60° C)
Humidity	5% to 95% non-condensing
Audio Codecs	G711u, G711a, G722
Network Compliance	IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over
Regulatory Compliance	FCC Part 15, Canada ICES-3 Class A, CE
Maximum Sound Pressure	90 dB SPL @ 1 m
Connections	(1) RJ45 10/100 Base-T, (3) gel-filled butt connectors
