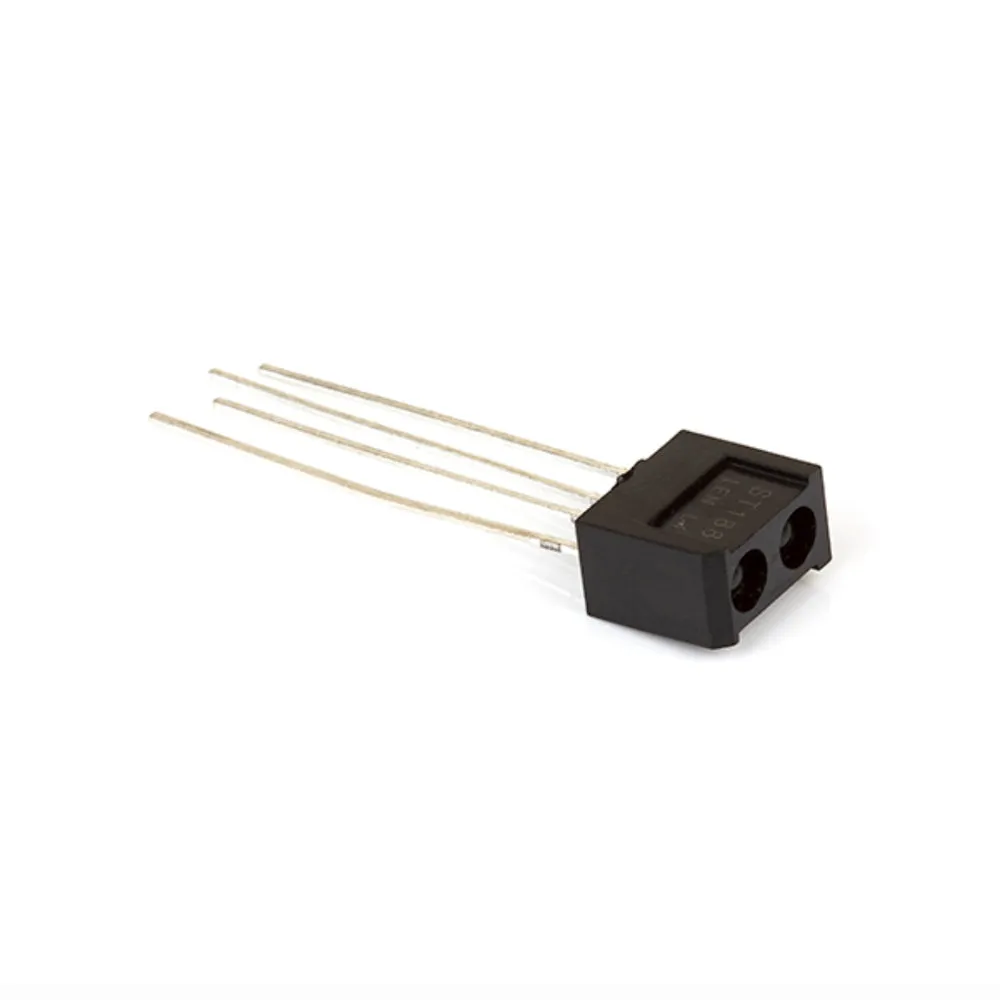

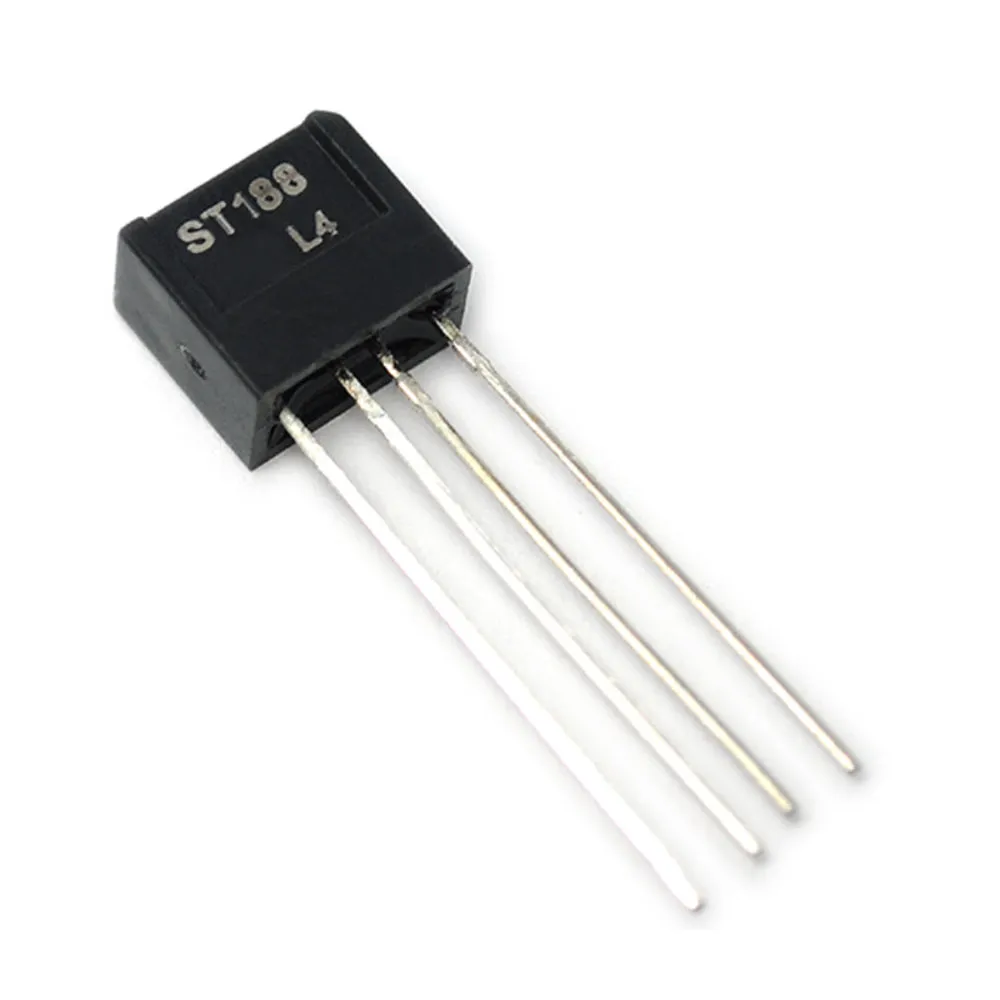

ST188 infrared photoelectric reflex sensor

The ST188 infrared photoelectric reflex sensor is designed for non-contact object detection in industrial automation systems. It works by emitting infrared light towards a reflector or object, and detecting the time it takes for the light to return. This allows the sensor to determine whether an object is present, triggering a response when reflection is detected. The sensor offers high sensitivity and precision, making it suitable for a wide range of applications, including assembly lines, packaging, and material handling.

Built to operate in various environmental conditions, the ST188 sensor is reliable in both indoor and outdoor settings. Its use of infrared light minimizes interference from visible light sources, ensuring accurate detection even in challenging lighting conditions. This makes the sensor an ideal choice for environments where consistent, efficient automation and object detection are crucial.

Technical Details

Model: ST188 Optoelectronic Switch
Black Head Size: 9mm x 5mm (L x W)
Total Length: 30mm
Material: Plastic, Metal
Color: Black

Features

Model: ST188 Infrared Photoelectric Reflex Sensor
High Sensitivity for Object Detection
Reflective Sensing Technology
Compact Size: 9mm x 5mm Head
Easy Installation with Plastic and Metal Materials
Low Power Consumption
Ideal for Object Detection and Counting

Pin Description:

VCC: Power Supply (Typically 5V)
GND: Ground
OUT: Output Signal (Low/High based on detection)

Applications :

Object Detection: Detects objects without physical contact in automated systems.
Presence Sensing: Monitors presence of items in conveyor systems or production lines.
Position Control: Used in robotics for precise position feedback.
Security Systems: Monitors entry points for intrusion detection.
Automated Doors: Activates doors when motion is detected.
Elevator Control: Detects presence of objects or people at elevator doors.
Distance Measurement: Measures distance between sensor and object based on reflection.
Packaging Industry: Used for object sorting and counting in packaging processes.
Traffic Monitoring: Detects vehicles passing through toll booths or gates.
Consumer Electronics: Used in devices for motion sensing or gesture control.
